The Cryptnox Contactless Smart Card Reader is an advanced, high-speed reader tailored for businesses and individuals seeking secure, reliable, and efficient authentication solutions.
CHF 45.33
Tax included. Shipping calculated at checkout.

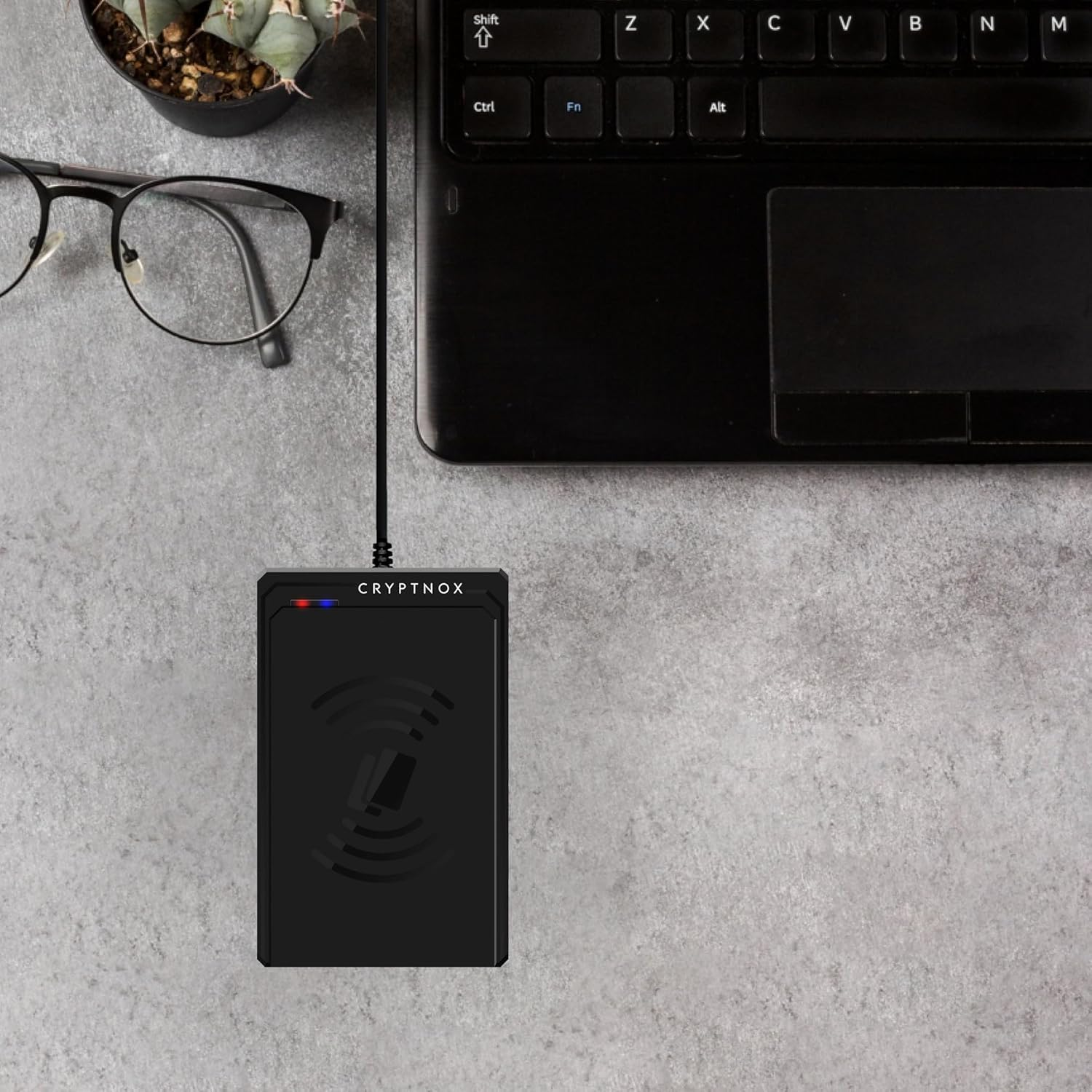

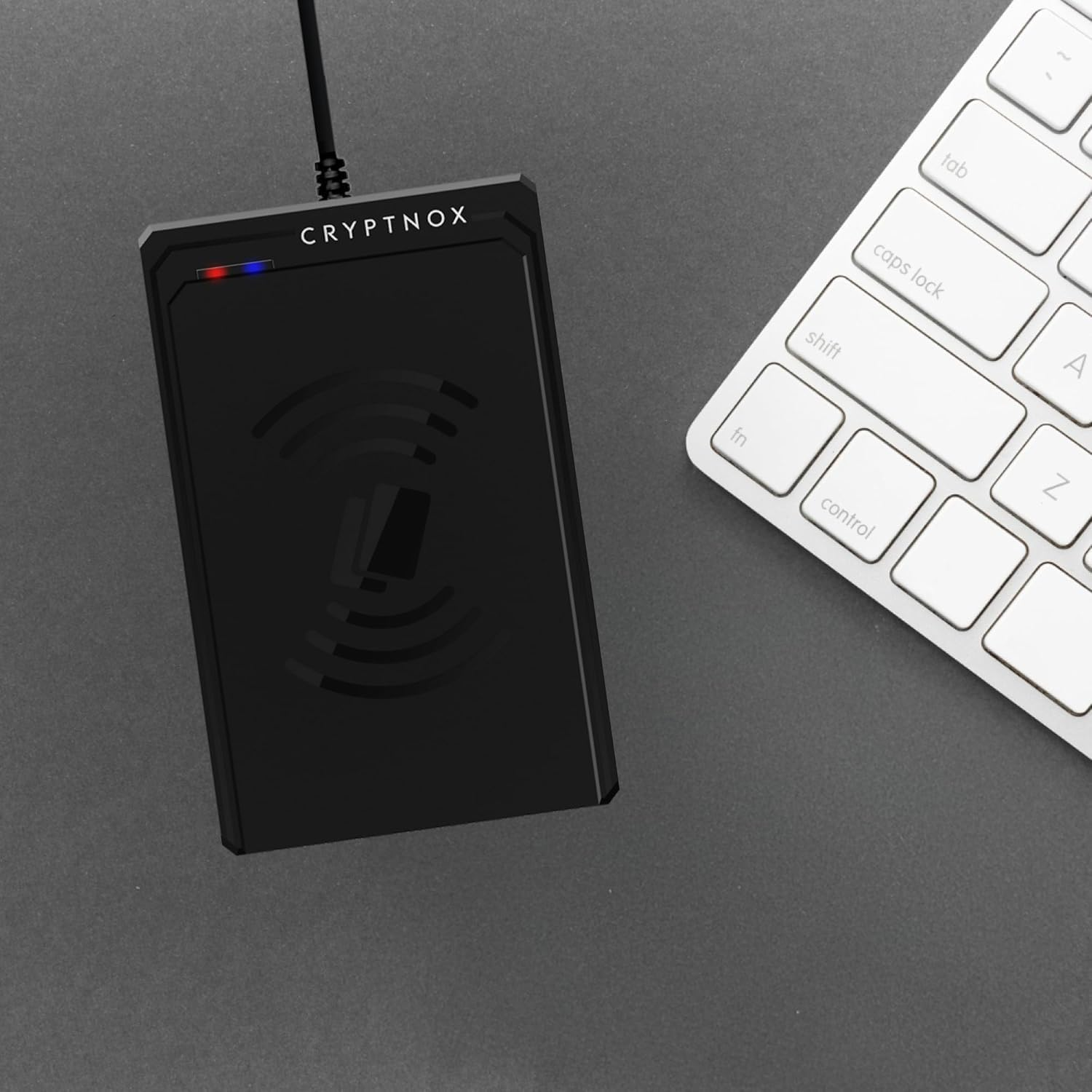

The Cryptnox Contactless Readeris a smart card reader designed to support contactless cards compliant with ISO 14443 and Mifare standards. Offering seamless integration with major operating systems, itis anideal solution for a wide range of applications, including electronic payments and secure authentication. Its robust performance makes it particularly well-suited for high-security environments. The readeris perfect forindustries and use cases such as e-commerce, financial institutions, and access control systems, providing a reliable and secure option formodern authentication needs.
1. Connect the Reader
• Plugthereaderdirectlyinto a USB port on your computer.
• AnLEDindicator will light up to confirm power.
2. Automatic Setup
• Your operating system will automatically detect and configure the device.
• No software installationis needed for standard use. The device is plug and play. Drivers are already
presentin major OS.
3. Ready to Use
• Hold your contactless smartcard near the reader (within1-3 cm).
• The card will be automatically detected and processed by any compatible application.
Interface type: USB 2.0 CCID (12Mbps)
Connectivity Technology: USB Type C (converter USB type C to USB type A optionally included)
Supported Contactless Card: Speed: 106kbps, 212kbps, 424kbps, 848kbps (Depends on card),
Clock Frequency: 13.56MHz 150 14443 Type A and Type B, Mifare® Protocol, Felica® protocol
Extended APDU: supported
Mifare S50/S70/Ultralight C cards: supported
Open UID(User ID) function: supported
Size: 120 x 80×25.6 mm
Weight: 80 grams
Material: ABS+PC
Status Indicator: Blue and Red LED
Working temperature: 0°C ~ 60 °C
Strong temperature: -20°C ~ 85 °C
Humidity: <90% (non-condensed)
Dust-Proof: P54
Power supply: USB port 5V DC
Working current: 170mA without any card, 230mA with contactless card
Power to Smart Card: 60mA
Hardware Security: Short circuit protection, Thermal protection, Over-voltage protection, High security
level chipset, Electrostatic prevention
Hardware Security: Firmware encryption mechanism, Firmware upgradability in encryption, Firmware
cannot be read out, Anti-reverse analysis
Supported OS: Win2000+ / Linux/ macOS X/ UNIX
Supported Contactless Card: ISO 14443 Standard, Felica® Standard Mifare® Standard, EMV Level 1
Standard, PC / SC Standard, USB 2.0 Standard, CCID Standard
API Standard: PC/SC Lite / WINSCARD API / CT-API
Certifications: CE/FCC /RoHS /EMV Level 1/LTIC /BSMI /UL
